NAS cloud hardware platform, 2 protable hard drive slots

Products Description

NAS Motherboard Server 2/4/6/8/10-Bay N100 Quad Core 2.5G Network Card Microtik Network Soft Routing Free Xpenology

Product Features

Dual hard drive NAS private cloud hardware platform ;

NAS-02N100 supports hardware RAID 1 and 4K video playback;

Support multiple NAS software such as Synology;

NAS-02N100 has dual 2.5G Intel network ports;

Supports Android, Apple, HarmonyOS and other mobile and tablet terminals;

Support external network penetration;

Support data backup, audio and video entertainment;

Two 2T/4T/8T/20T portable hard drives can be selected, or purchased by oneself.

NAS ZHU 1.jpg

NAS 1.png

NAS 2.png

NAS 3.png

Specification
Chassis	All steel structure+plastic panel, white

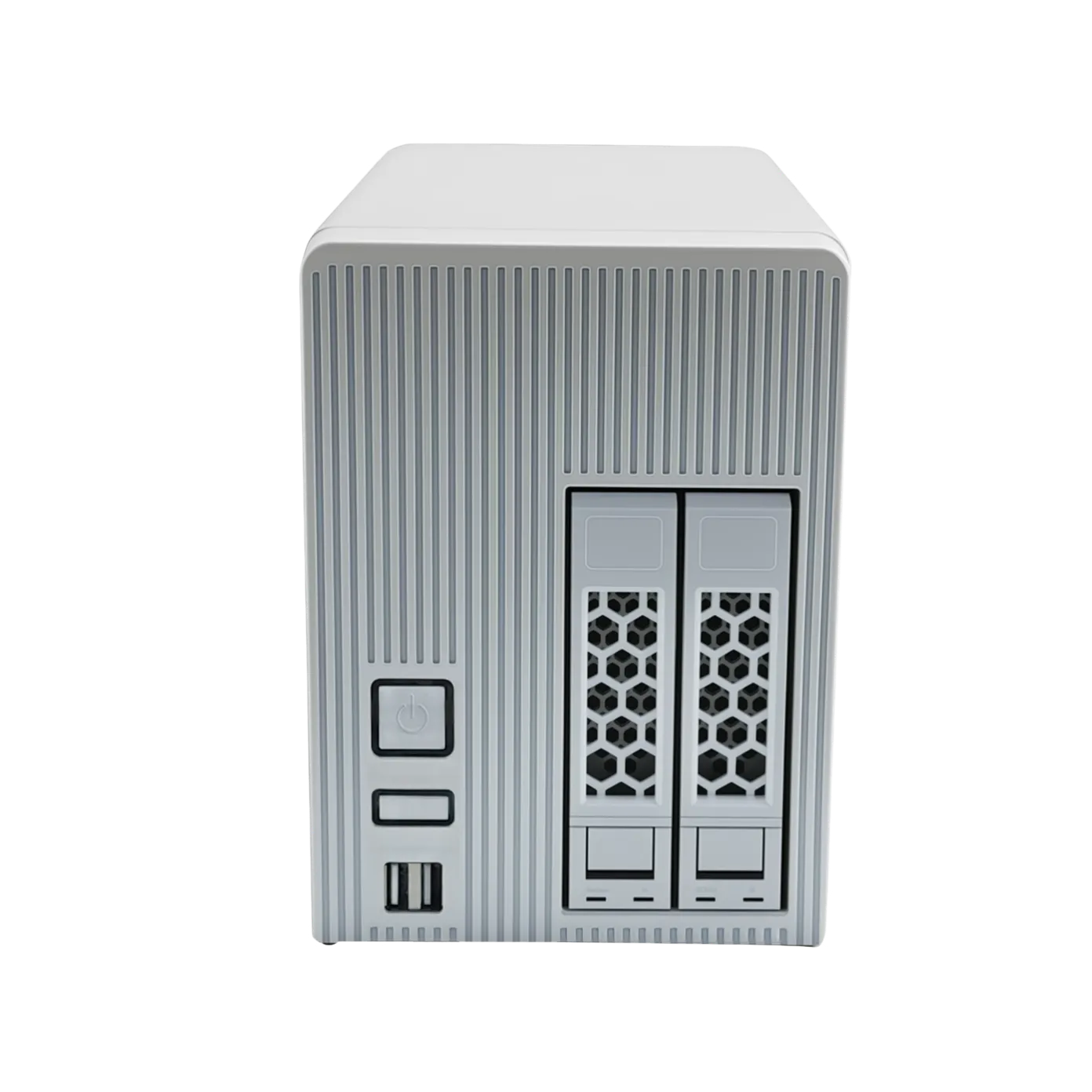

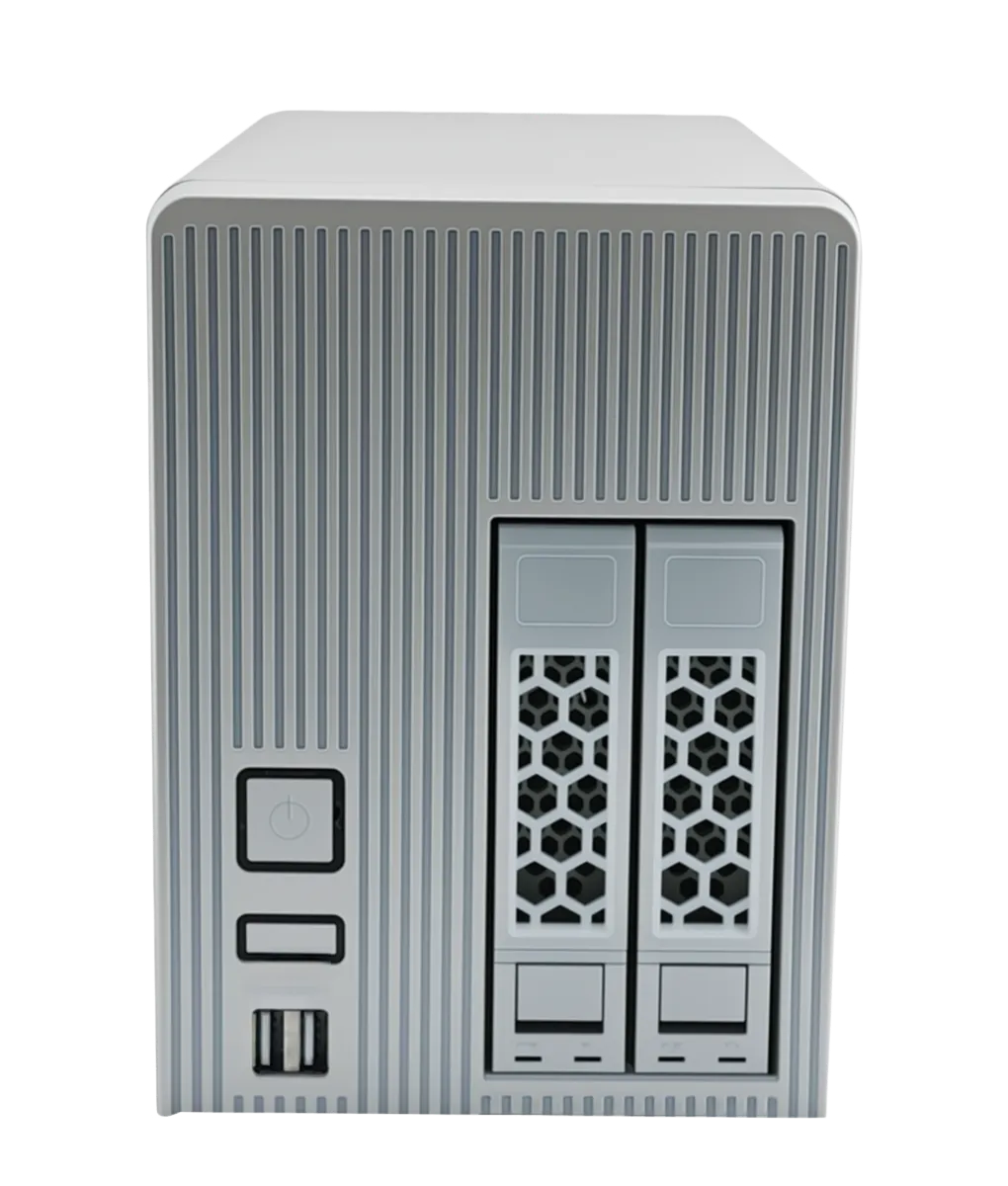

Front	POWER/HDD indicator light, power switch, 2USB 2.0, 2 portable hard drive slots
Back	Motherboard interface, dual fan cooling
Model NO	NAS-02N100			NAS-02M76
Motherboard	Intel N100 specialized motherboard			Intel HM76 specialized motherboard
CPU/GPU	Intel N100 4 cores and 4 threads			i5 3230M
Ram	4G DDR4			4G DDR3
Hard disk	64G			64G
External hard drive	Optional			Optional
RAID	support hardware RAID 1			Software RAID
Network ports	Dual Intel 2.5G			Single GBE
Size	185mm * 135mm * 265mm			Packing Size	280mm * 240mm * 360mm
Power supply	12V@7A Adapter			N.W/G.W	2.7/3.9KG(Excluding mechanical hard drives)
Installation	Desktop placement
Work and environment
Working Temperature	0～60℃	Storage Temperature	-30～75℃	Environmental humidity	0~90% Air humidity, non-condensing
		Vibration	5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC	GB9254-2008 class A		Impact	10g acceleration, 11ms duration
