Products Description
Product Introduction
The All-Aluminium Fanless Android Industrial Box PC with rockchips series CPU is a high-performance, reliable computing solution designed for industrial applications. Featuring a durable, all-aluminium fanless design, this PC ensures efficient heat dissipation, making it ideal for harsh environments such as factories, warehouses, and outdoor installations. Powered by rockchips processors, it offers a perfect balance of performance and energy efficiency.
With versatile I/O options including multiple USB, LAN, HDMI, and COM ports, it is highly adaptable for various industrial automation, IoT, and edge computing applications. The rugged construction guarantees longevity, even in challenging conditions like extreme temperatures and dust. This compact, lightweight system is easy to integrate, offering reliable performance with minimal maintenance, perfect for critical industrial operations.
Features
Android Fanless BOX Industrial Control Computer;
Aluminum alloy material;
Board mounted RK3568/RK3576 main chip;
Optional 2G/4G/8G memory;
Optional 16G/32G/64G/128GB Flash hard drive;
Standard dual network 4-series 3USB, OTG, 8-channel GPI0, optional 6COM 5USB;
Built in WIFI, optional Bluetooth, 4G module, GPS module;
1-channel CAN
| Specification parameters | Optional configuration | |||||||
| Front Panel | POWER switch with light, 2USB, WIFI | GPS, 4G, 5G, 2USB, 2C0M | ||||||
| Rear Panel | 8-bit GPIO, SIM, 4COM, CAN, OTG, USB 3.0, 2LAN, Audio, HDMI output, DC12V power input | |||||||
| Adapt to Motherboard | RK3568/RK2576 dedicated motherboard | |||||||
| CPU/GPU | RK3568/RK3576 | |||||||
| Network Card | Dual network | optional single network | ||||||
| Memory | Optional 2G/4G/8G, see ordering information for details | |||||||
| FLASH | Optional 16G/32G/64G/128G | |||||||
| Wireless | WIFI; Optional 4G/5G module, GPS, Bluetooth | |||||||
| Size | 274mm (length) * 191.6mm (width) * 33mm (thickness) | |||||||
| COM | 6*COM | Optional 4*COM | ||||||
| Size | 274mm (length) * 191.6mm (width) * 33mm (thickness) | N.W/G.W | 1.5/2KG | |||||
| Power Supply | 12V@3A adapter | Can OEM 9V-36V wide voltage input | ||||||
| Installation method | Bracket installation | |||||||
| Work and Environment | ||||||||
| Operation Temperature | 0～60℃ | Storage Temperature | -40～75℃ | Ambient Humidity | 0~90% air humidity, no condensation | |||
| Vibrate | 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration | |||||||
| EMC | GB9254-2008 class A | Impact | 10g acceleration, 11ms duration | |||||

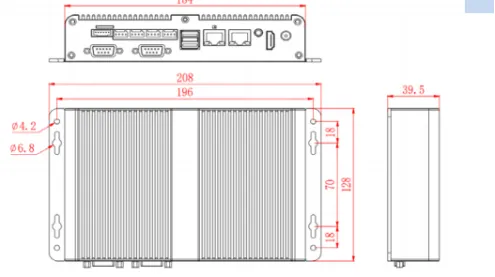

Installation Dimension Diagramllation Dimension Diagram

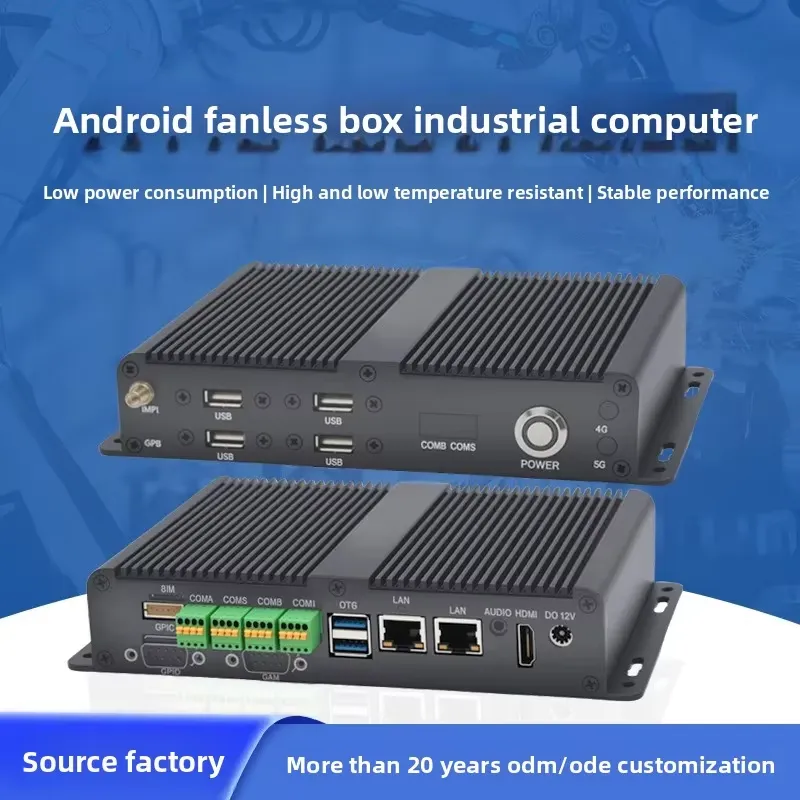

Android fanless BOX industrial computer with RK3568/3576 CPU
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
