Products Description

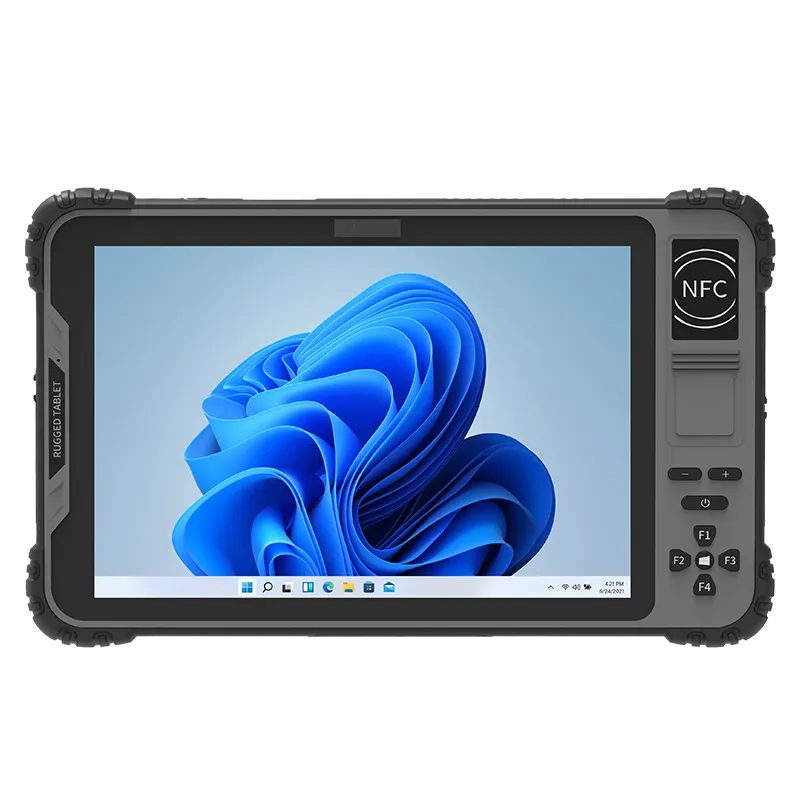

10.1 inch Rugged Tablet i5-1235U/i7-1255U/16G/256G IP67 Protection Level
Product Introduction
Our 7inch Mini Rugged Tablet has passed the IP67 waterproof performance test, which makes our tablet super waterproof, whether it is in the rain, in the shower, or even in water activities, you will You can use the tablet with confidence. Tablet PC has been carefully designed with a perfect closed shell and passed the strict military standard test. It is dust-proof and drop-proof. It is an essential companion for construction workers and outdoor explorers.
| Product Appearance | |||
| Type | Details | Standard Configuration | Optional configuration |
| Product Form | Product Form | 10.1 inch Rugged Tablet | NA |
| Dimension | 319.5*195*19.5mm | NA | |
| Weight | 1450g | NA | |
| Material | ABS+PC+TPU | ||
| Product Color | Black+Grey | NA | |
| LCD | Screen Size | Type: IPS FHD Size: 10.1 inch 16:10 | NA |
| Resolution | 1200*1920 | NA | |
| Brightness | 450Nit | ||
| TP | Touch panel | 10 points capacity TP, G+G, Hardness over 7H, Scratch resistant | NA |
| Camera | Front | Front 8.0MP ，FF | NA |
| Rear | Rear 13.0MP，AF Flashlight | NA | |
| Speaker | Built-in | Built-in 8Ω/2W Waterproof Box Speaker *1 | NA |
| Microphone | Built-in | Waterproof microphone *1 | NA |
| FAN | IPX5 | IPX5 fan *1 | |
| Power Indicator Light | Power on/off | Blue light when power on, Red light off when off | |
| Key | Button | Power Key *1 Volume Key + *1 Volume Key - *1 Function key *1 （F1、F2、F3、F4、Windows） | NA |
| Battery(tablet) | Type | 7.6V Li-polyment Battery | NA |
| Capacity | 6500mAh | NA | |
| Endurance | 6.5hrs（Unconnected， screen 1080P+50% brightness） | NA | |
| System Hardware Configuration | |||
| Type | Details | Descriptions | Optional configuration |
| CPU | Type | Intel core 12th GEN i5/i7 CPU | NA |
| Speed | Intel® Core™ i5-1235U Processor 12M Cache, up to 4.40 GHz Intel® Core™ i7-1255U Processor 12M Cache, up to 4.70 GHz | NA | |
| GPU | Type | Intel® Iris® Xe Graphics eligible | NA |
| RAM | LPDDR4 | 16GB | Optional: 32GB，512GB/1TB |
| ROM | Emmc | 256GB | |
| TPM2.0 | Built-in | TPM2.0 | |
| Sensor | Built-in | support G_sensor | NA |
| Internet Connections | |||
| Type | Details | Descriptions | Optional configuration |
| WIFI6 | WIFI module | IEEE 802.11 a/b/g/n/ac/ax ISM 2.4G+ISM 5G Dual frequency WIFI | NA |
| Bluetooth | Built-in | BT5.1 (BLE) class 1; Transmission Distance: 10m | NA |
| 4G | Built-in | GSM：B2/3/5/8 CDMA：BC0/BC1 WCDMA：B1/2/5/8 TDS：B34/39 TDD:B34/B38/B39/B40/B41 FDD:B1/3/5/7/8/20/28A/28B | Optional:5G/4G modules |
| GPS | Built-in | GPS+GLONASS+Beidou+Galileo | NA |
| NFC | Built-in | 13.56 Mhz | NA |
| I/O Ports | |||
| Type | Details | Descriptions | Optional configuration |
| Network | RJ45 *1 （10/100/1000M Adaptive） | ||
| TF Card | TF *1，Max: 256GB | ||
| HDMI mini | HDMI mini 1.4 *1 | ||
| Aviation Connector | RS-232 *1（DB9） | ||
| USB port | Extending external storage and data exchange | USB3.0 *2，Type C *1 (Charging+Data) | NA |
| Earphone Jack | audio output | ∮3.5mm Standard earjack *1 | NA |
| Micro SD | Micro SIM Card *1 | Optional | |
| Power Supply | DC 12V/4A *1 | ||
| Standard Accessories | |||
| Type | Details | Descriptions | Optional configuration |
| Adapter | Standard | AC100V ~240V 50Hz/60Hz Output DC 12V/4A | Optional:Chinese, American, European and Australian regulations |
| Software Configuration | |||
| Type | Details | Descriptions | Optional configuration |
| Operation System | Operation System Version | WINDOWS10/WINDOWS11 PRO | Optional：Android 10 Android12 |
| Product Certificate | |||
| Type | Details | Descriptions | Optional configuration |
| Certificates System | IP67，1.22m Drop | certified | NA |
| Drop certification | certified | NA | |
| ROSH | certified | NA | |
| CE \FCC | Meet the standard, not yet certified | NA | |
| MIL-STD-810G | Meet the standard, not yet certified | NA | |
| Battery | UN38.3，MSDS,Air and shipping reports，IEC62133 | NA | |
| Reliability | |||
| Type | Details | Descriptions | Optional configuration |
| Rugged Features | Falling height | from 120cm height to wooden floor with booting status | |
| Working temperature | ’－20℃～60℃ | ||
| Storage temperature | ’－30℃～70℃ | ||
| Humidity | Humidity: 95% Non-Condensing | ||
| Extended Functional Module（Optional） | NFC 13.56MHz |
| Barcode Scanner 1D/2D | |
| UHF 920 ~ 925MHz (CMIIT) | |
| Fingerprint Module | |
| Mobile communication 5G/4GLTE |
Product Features
■ Rugged Tablet are designed to withstand harsh conditions, including drops, shocks, vibration, and exposure to dust and water.
■The integration of 4G/5G connectivity ensures high-speed data transfer, low latency, and improved network reliability.
■ Rugged Tablet running on Android can leverage a variety of productivity apps from the Google Play Store.
■Windows open-source nature allows for greater customization and flexibility. Organizations can tailor the operating system to meet specific needs, integrating business apps and tools seamlessly.
■ Rugged Tablet often come equipped with large-capacity batteries to ensure extended usage in the field without frequent recharging.
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
